Printable Gear-Inch Chart

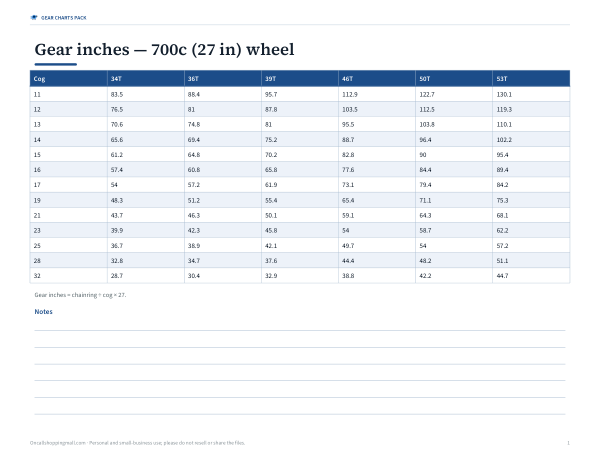

This gear-inch chart is for cyclists, bike fitters, mechanics, and anyone comparing drivetrain gearing on a 700c or 27-inch wheel. The sheet lists gear inches for cogs from 11 to 13 and chainrings 34T, 36T, 39T, 46T, 50T, and 53T. It includes sample values such as 11 to 83.5, 88.4, 95.7, 112.9, 122.7, and 130.1, plus 12 and 13 tooth rows. The formula is shown as gear inches = chainring ÷ cog × 27.

Free printable · PDF
- 1 page
- US Letter, landscape — choose “Fit to page” for A4
- PDF, 54 KB
Free for personal, family and classroom use.
Need to edit it? The full pack has the editable Excel and Word files plus all 4 sheets — $5.00, one-time.
Your free PDF is downloading. Want all 4 sheets in one download, plus the editable Excel and Word files so you can change the text?
Instant download · 7-day refund · Secure checkout by Stripe
Use the chart to compare gear sizes without doing the math by hand. Find the cog row, read across to the chainring you want, and match the gear-inch number to your setup. It is set up as a one-page Letter landscape PDF and also available as an XLSX file for quick reference or editing.
Good for
- Compare chainring and cog combinations
- Check gearing for 700c road bikes
- Plan drivetrain changes before buying parts
Tip: Print landscape at actual size so the full row and column labels stay easy to read.
4 files · PDF, XLSX, DOCX
Get every sheet: Gear Charts Pack
This sheet plus 3 more in one download, with the editable Excel and Word files. Printable bicycle gear-inch chart, a gear train planning worksheet, an RPM-to-speed chart template for vehicles and a gearing log.
$5.00 USD, one-time 4 files · about $1.25 each
- Instant download
- 7-day refund
- Secure checkout by Stripe
7-day money-back guarantee. Full refund within 7 days of purchase, even after you download.
More free printables

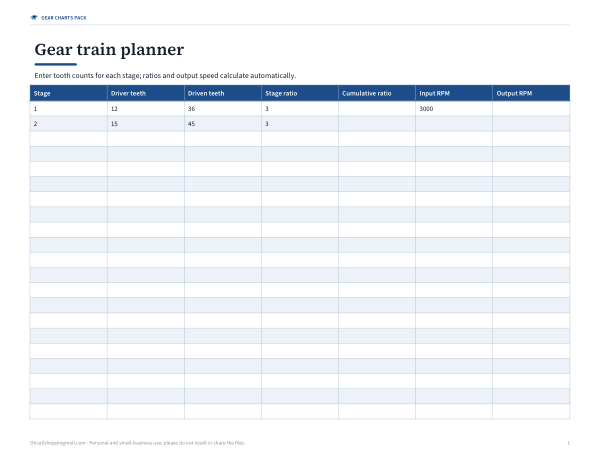

Printable Gear Train Planner1 page · free PDF

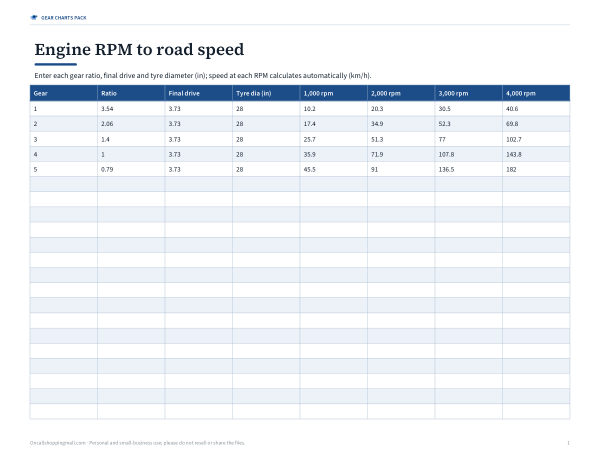

Printable RPM to Speed ChartCalculate road speed from engine RPM with gear ratio, final drive, and tyre diameter inputs. Includes a simple km/h chart for each gear.1 page · free PDF

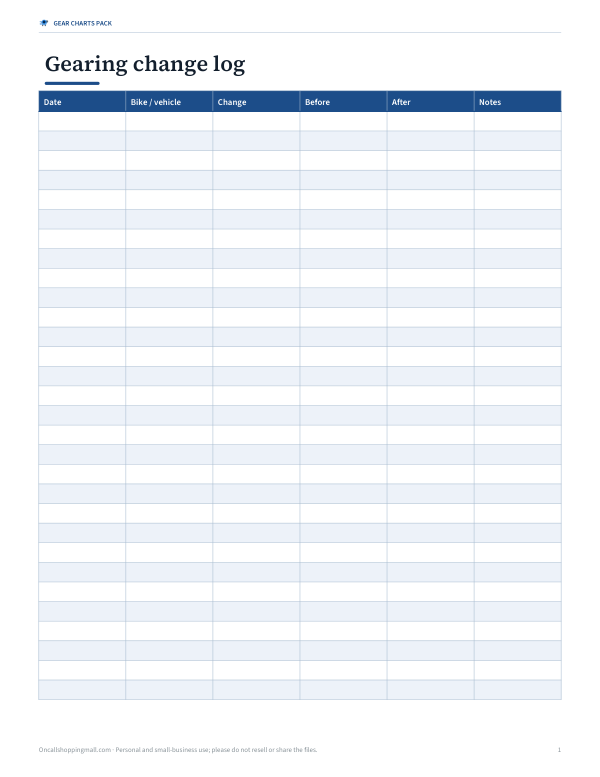

Printable Gearing Change LogTrack gear changes for bikes or vehicles with a simple log sheet for dates, before and after gearing, and notes.1 page · free PDF
